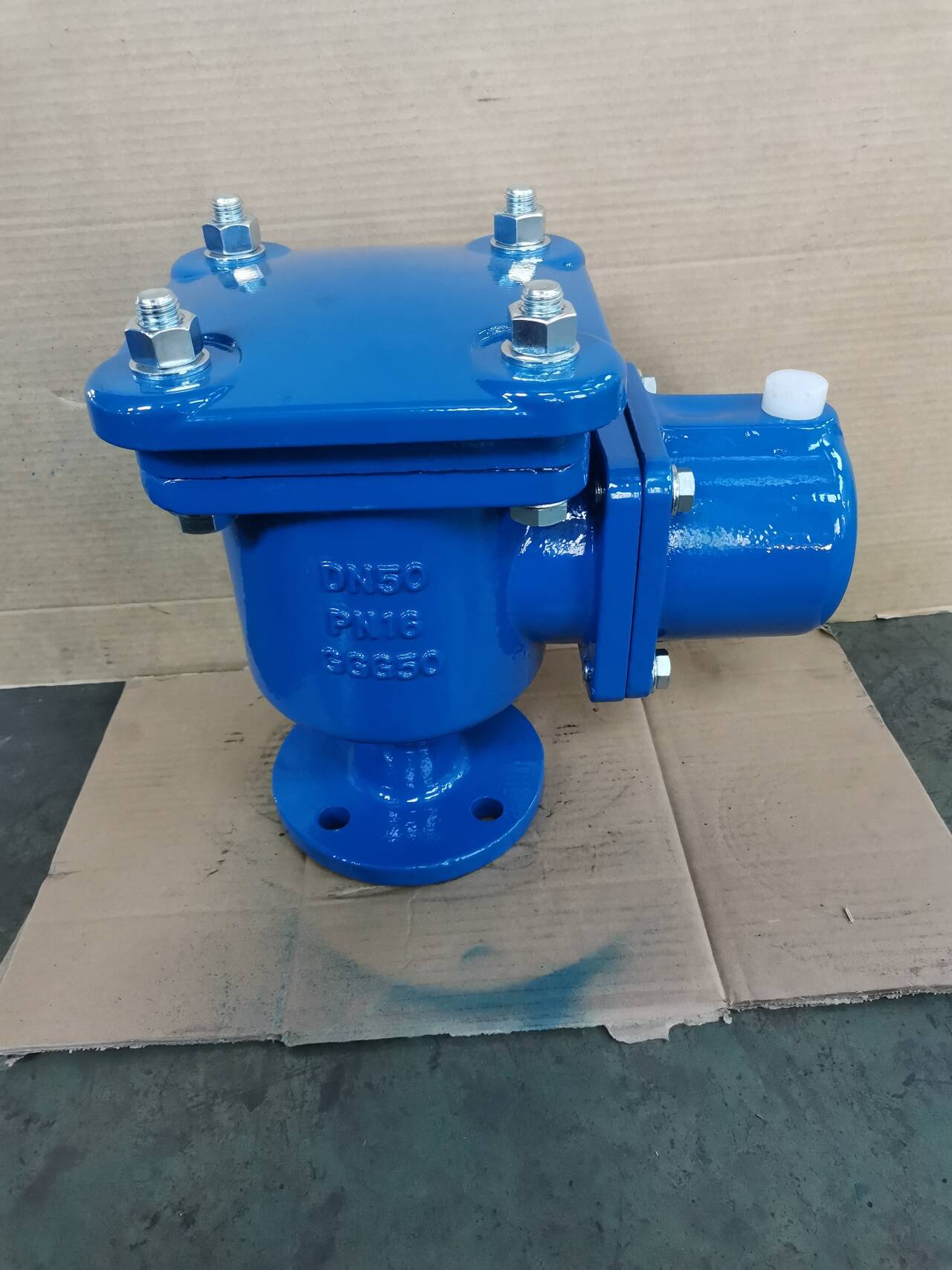

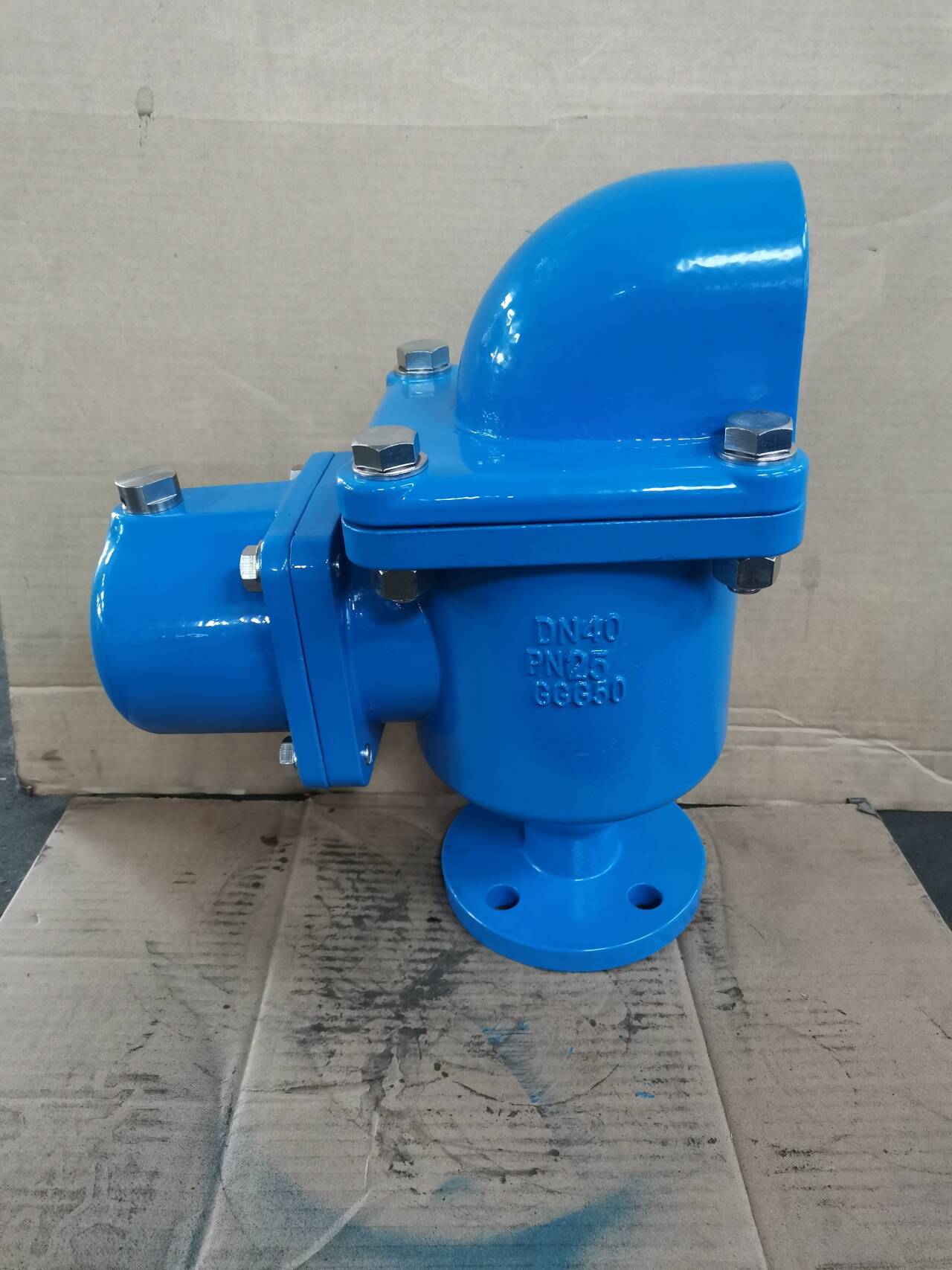

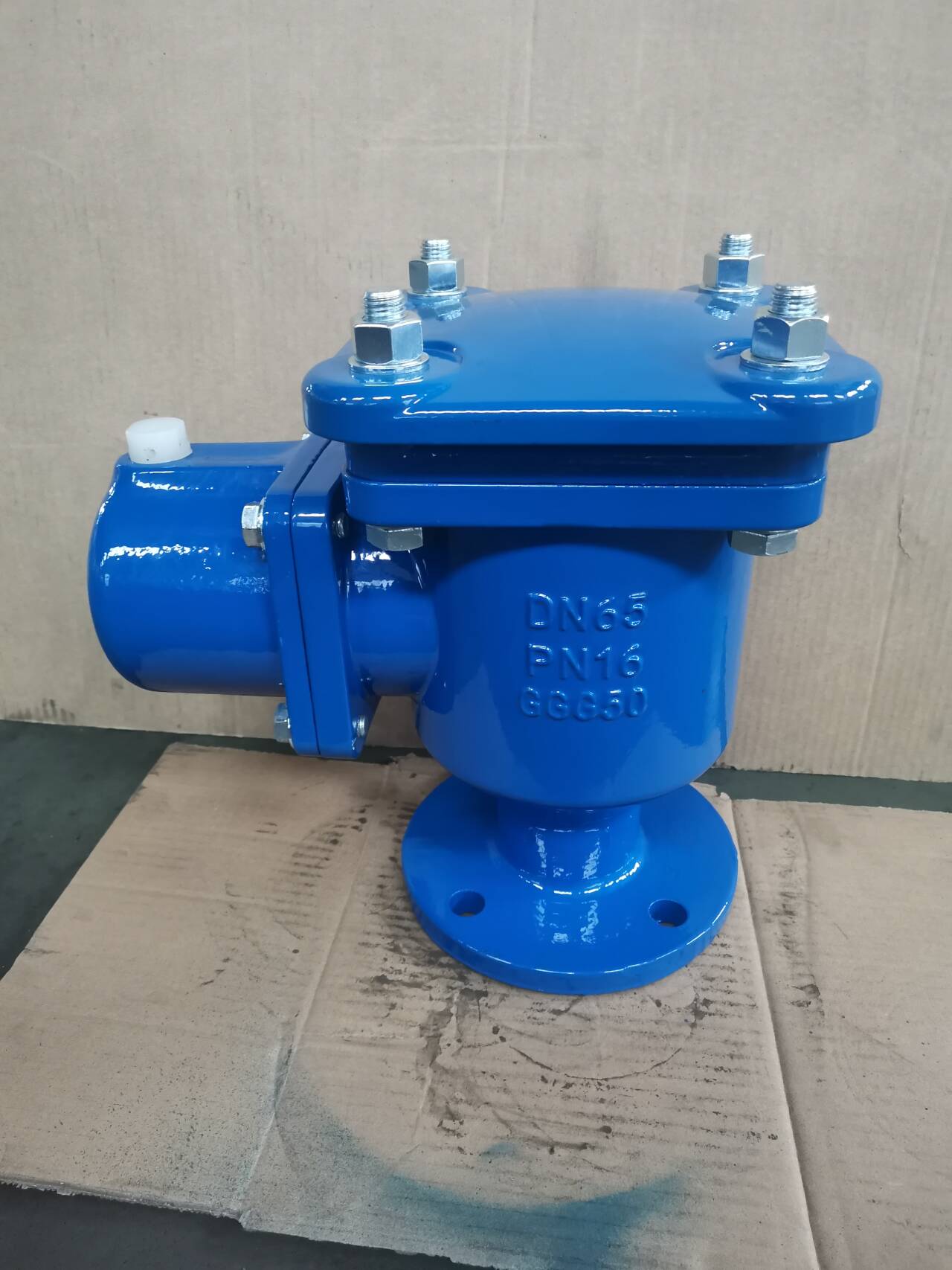

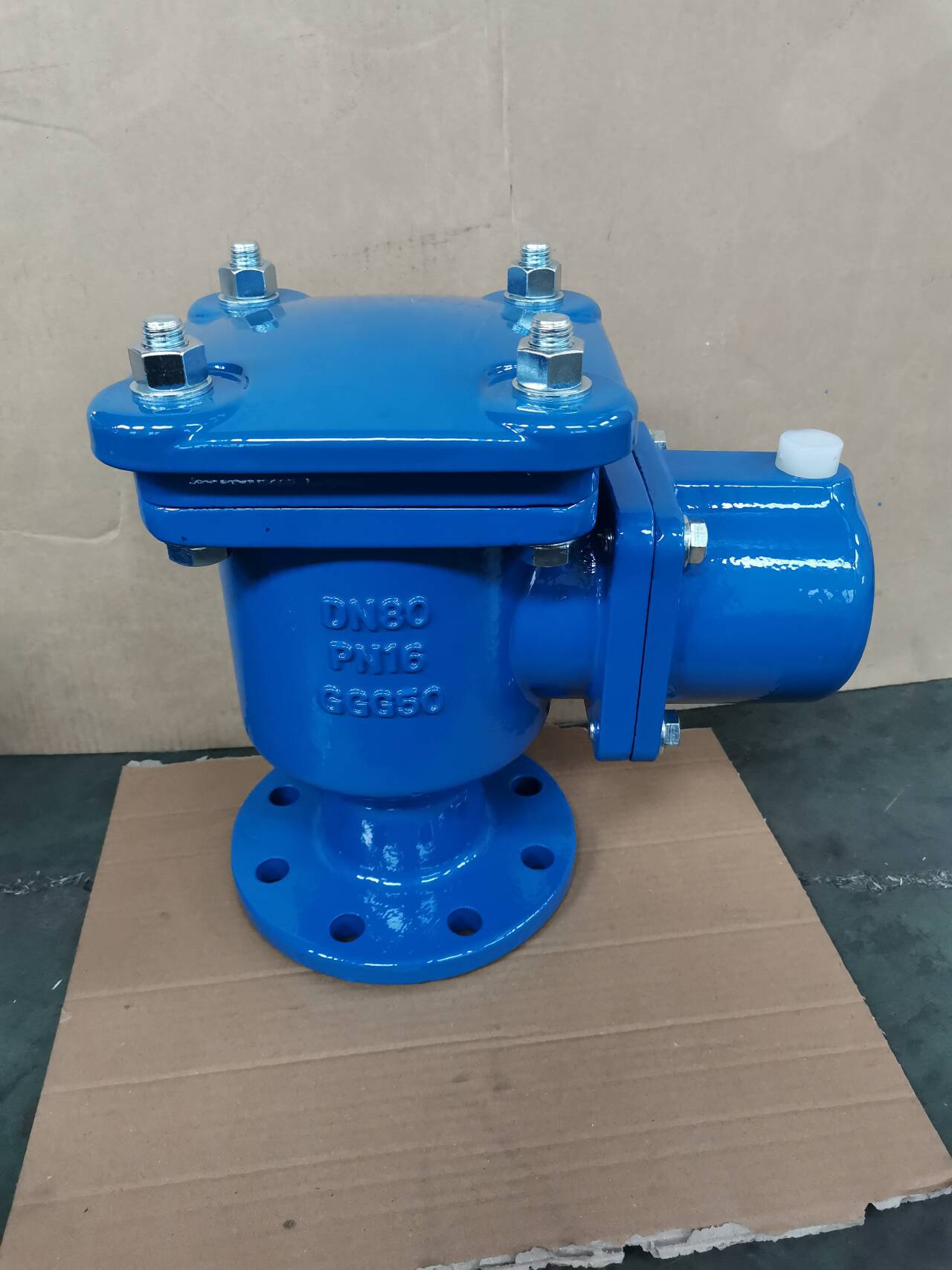

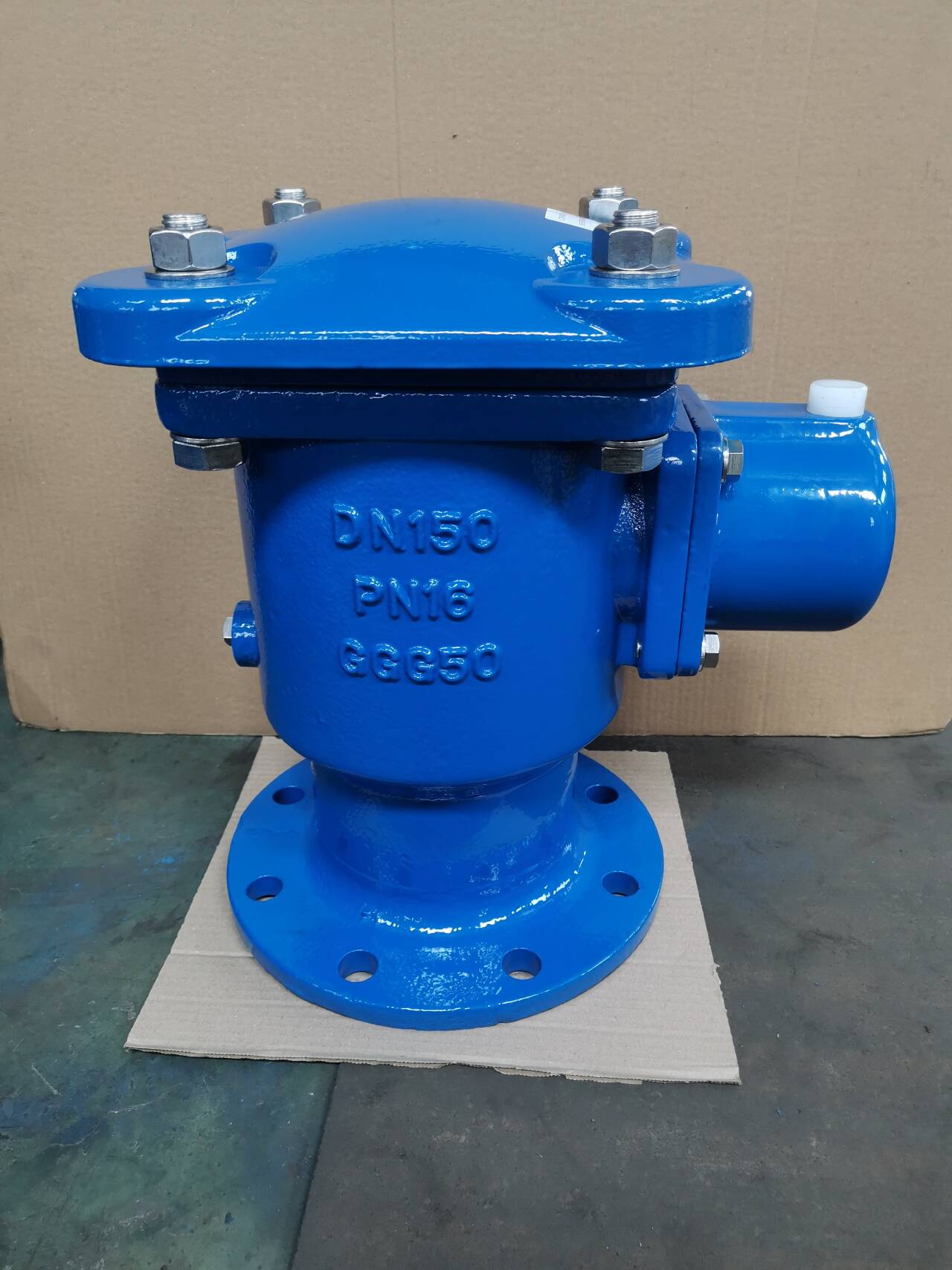

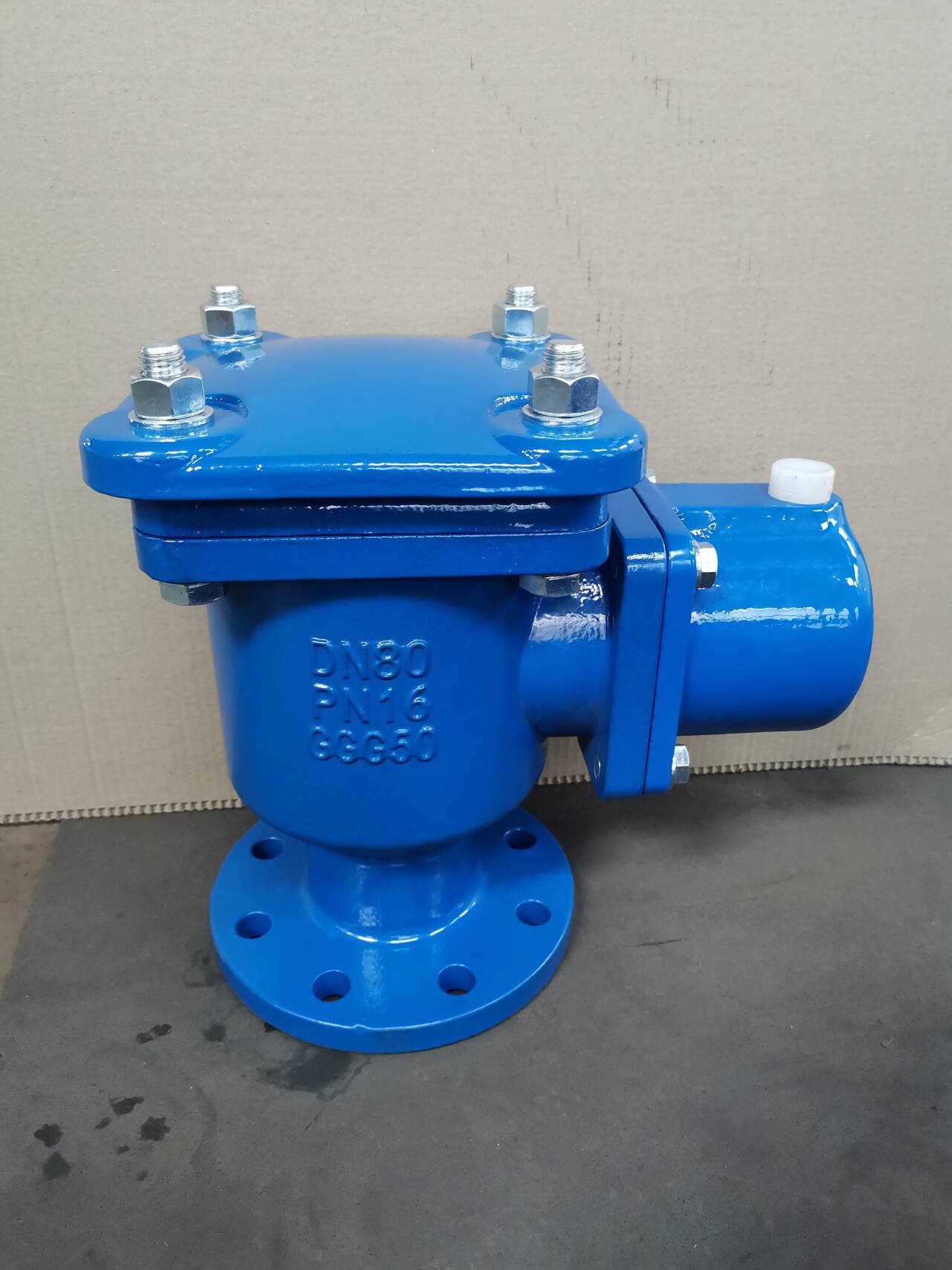

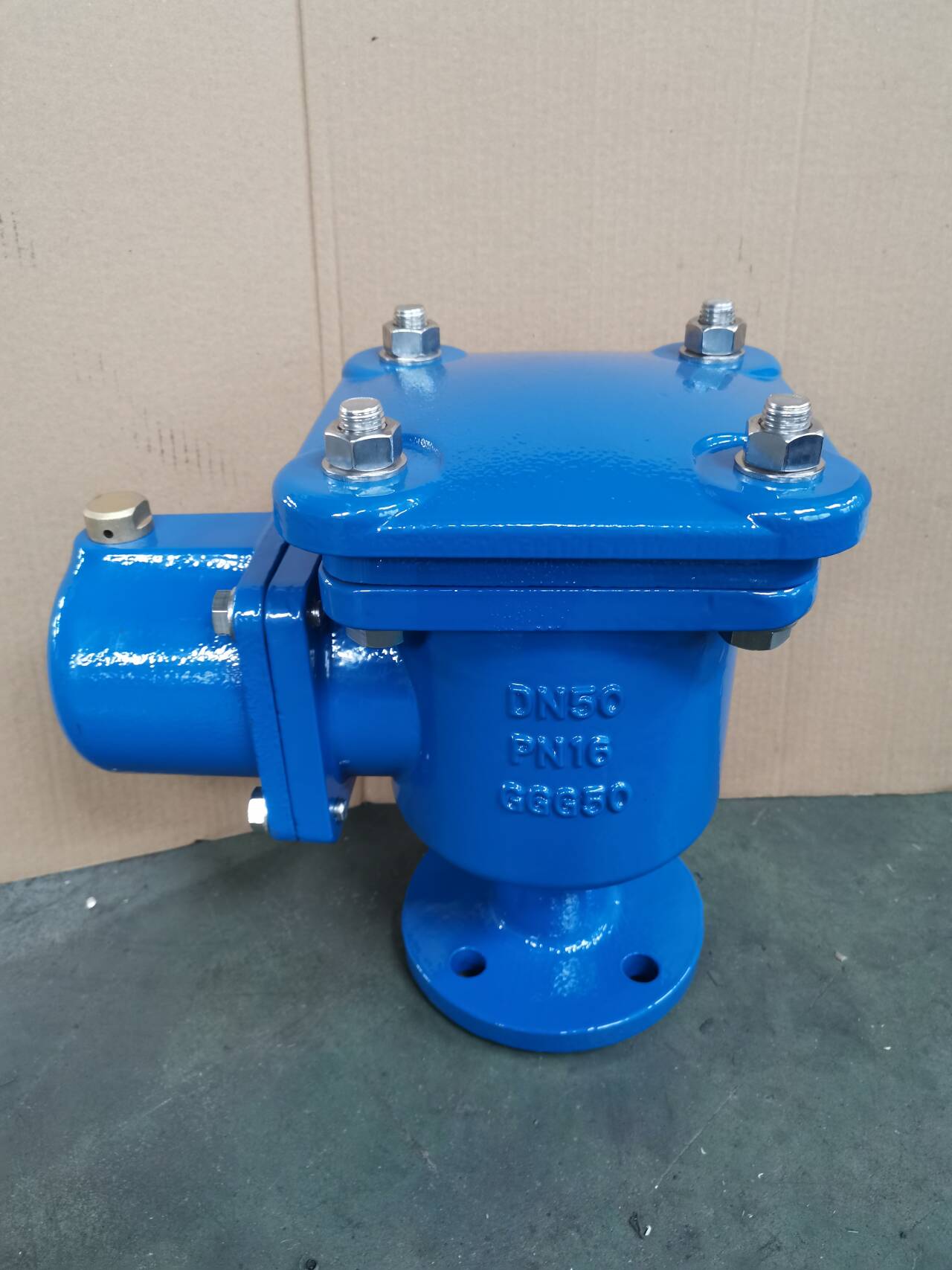

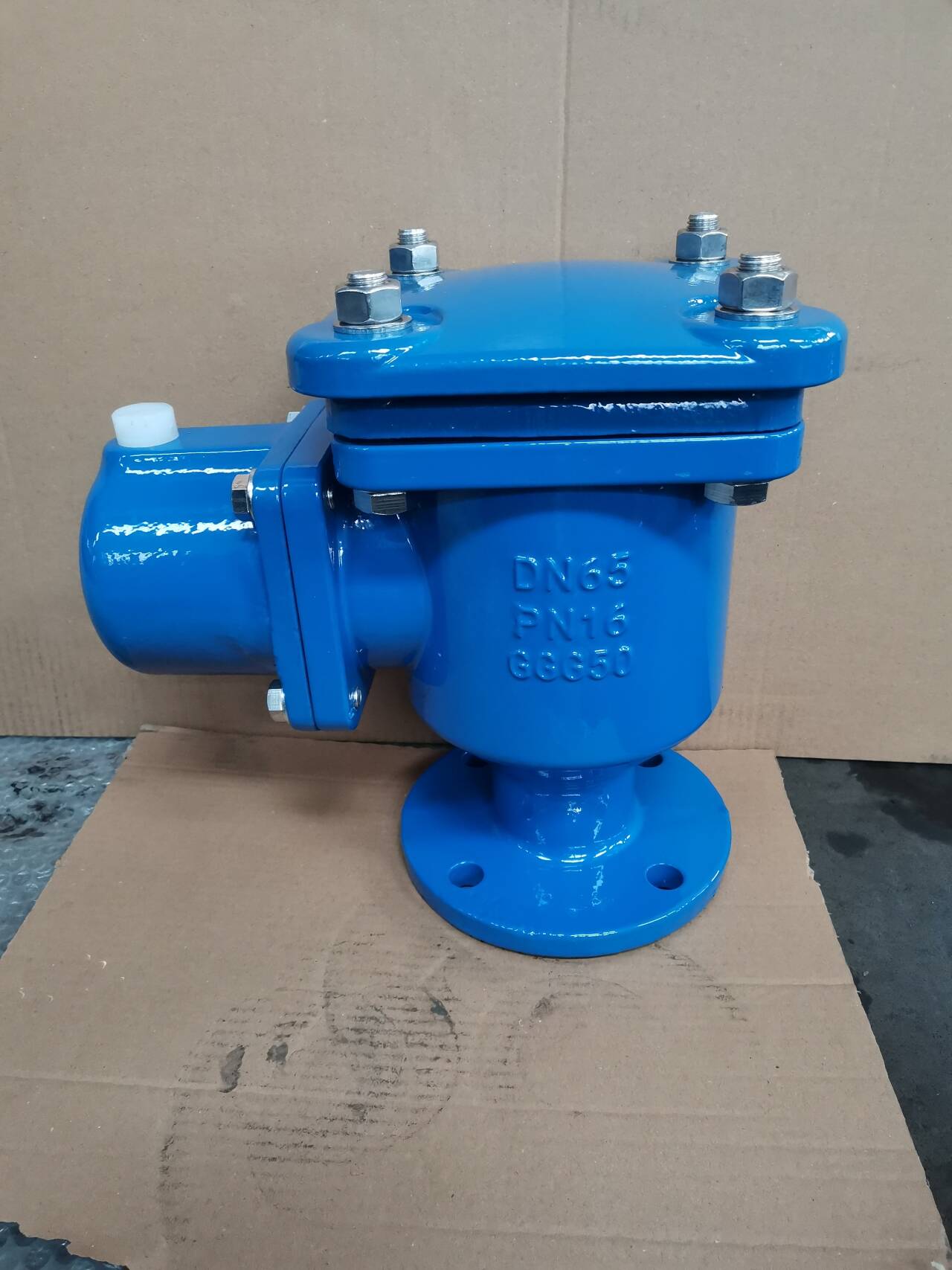

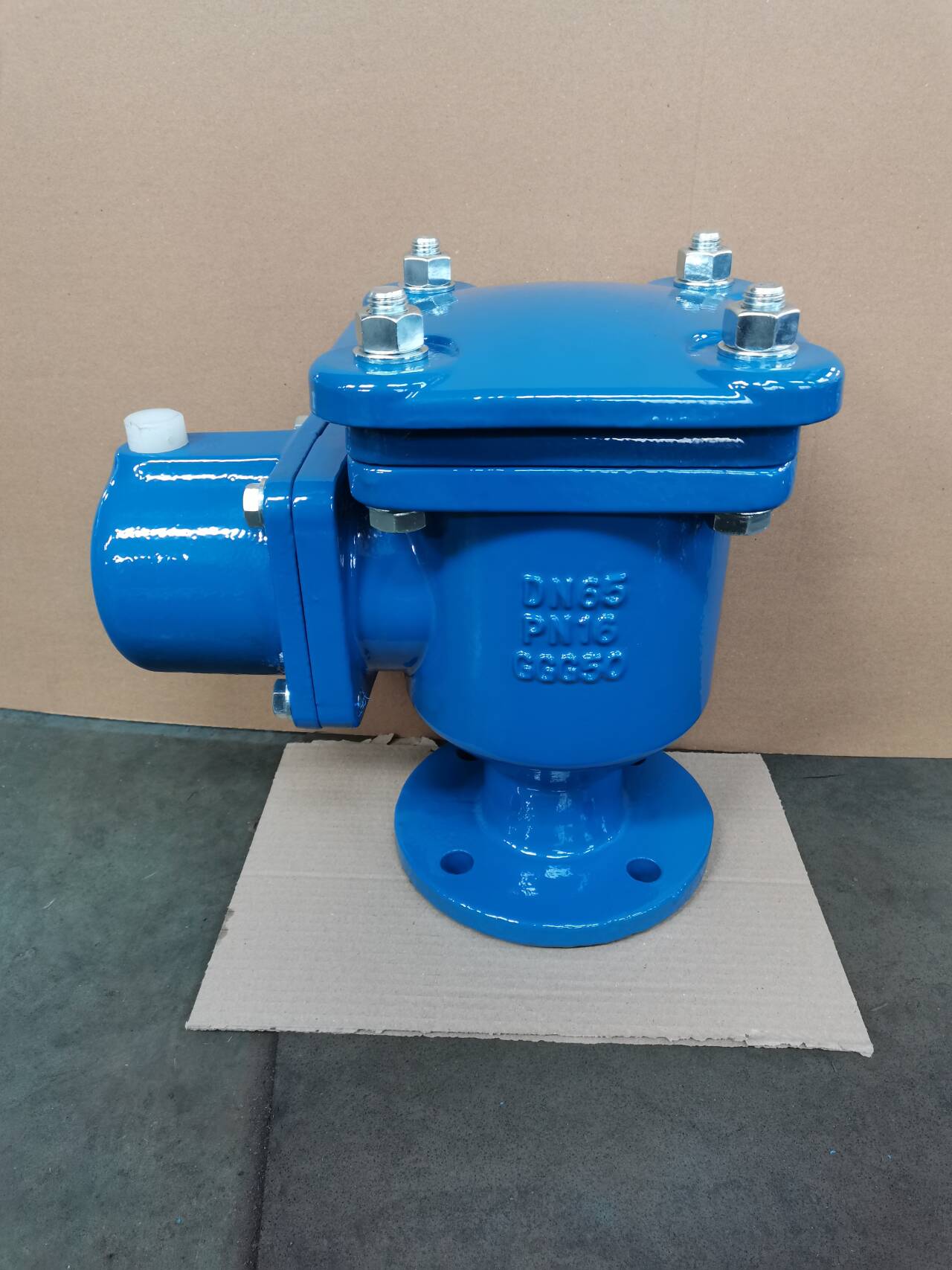

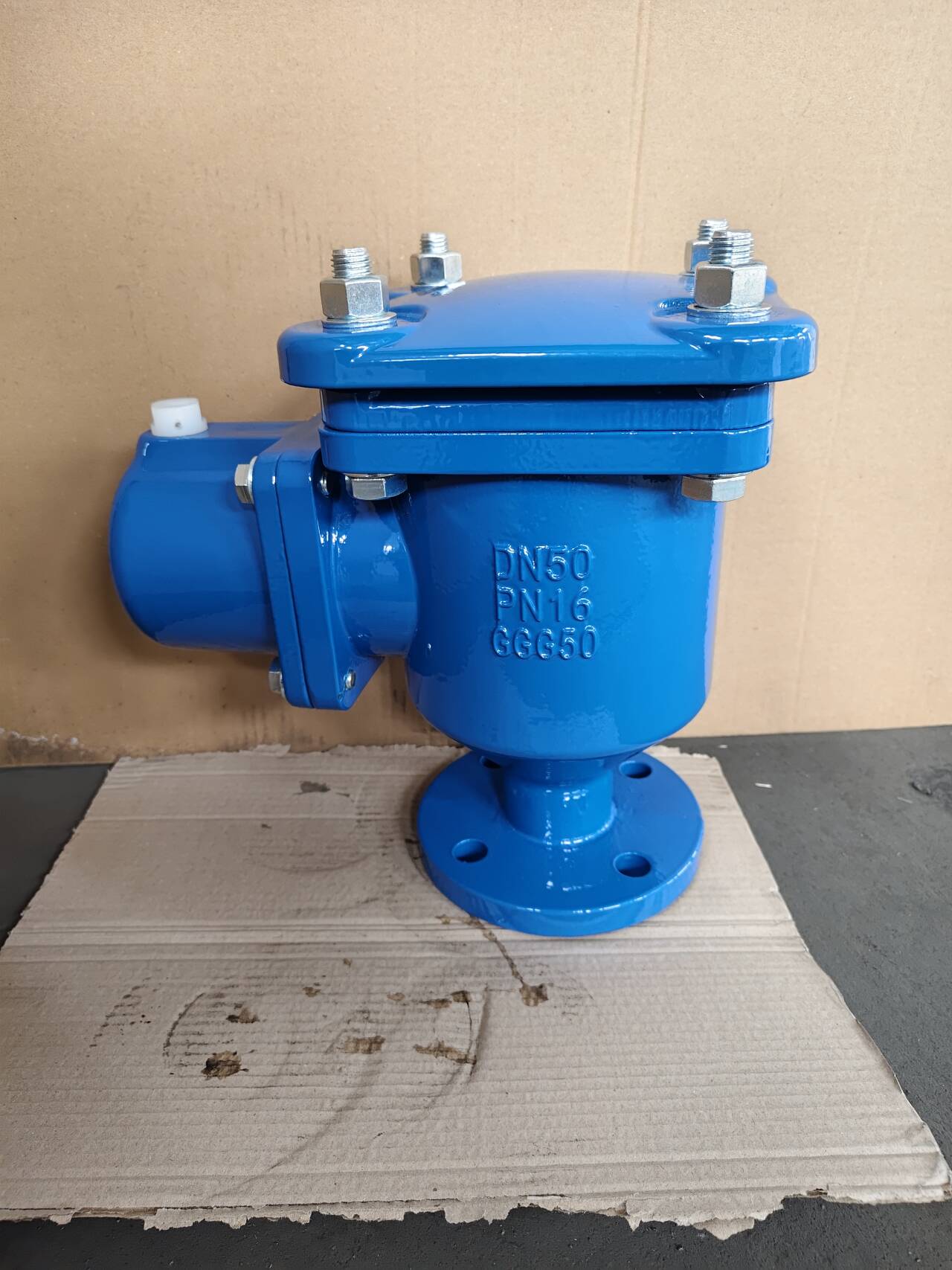

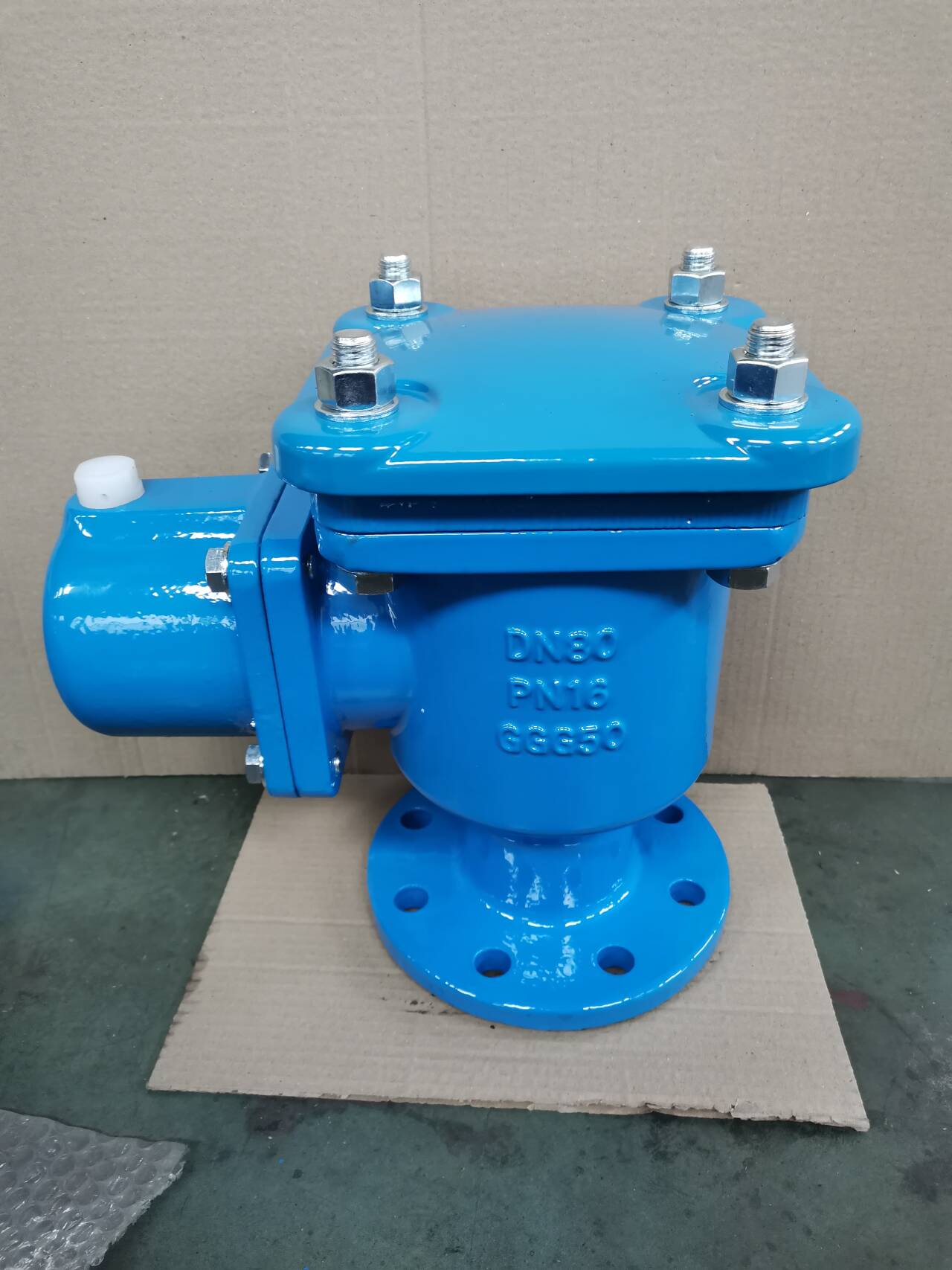

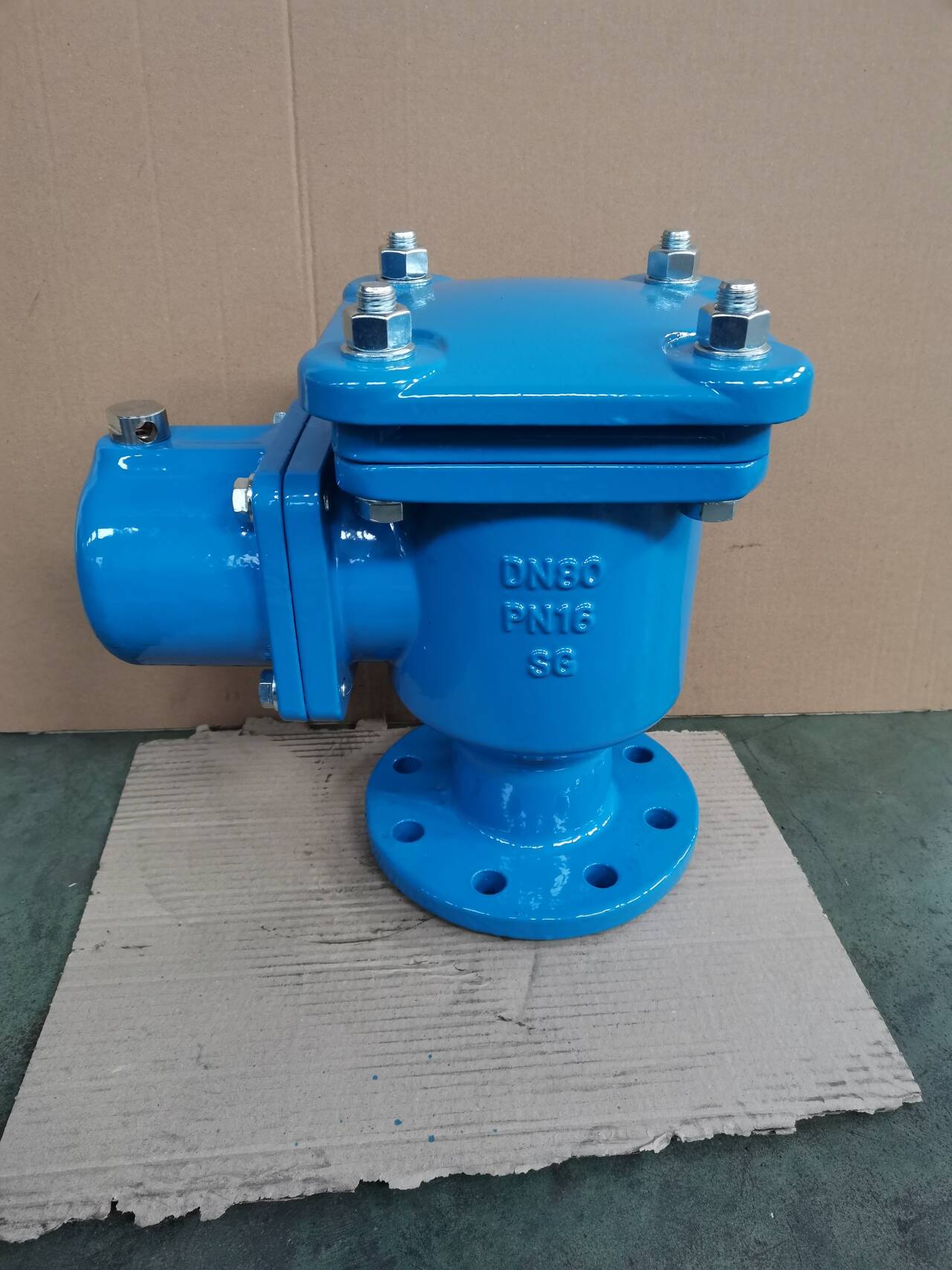

Double orifice air release valveRemarks:
1.Design according to BS EN 1074-4:2000
2.Test according to EN 12266-1:2012
Working pressure:16kg/cm3 Shell test pressure:25kg/cm³ Seat test pressure:18kg/cm³
3.Media: water, neutral oil
4.External and internal coating:100% fusion-bonded epoxy
5.Material 304, 316 used in bolt, nut and washer can be available by requirements.
| Double orifice air release valve with isolation gate valveRemarks:
1.Design according to BS EN 1074-4:2000, BS5163:2004
2.Test according to EN 12266-1:2012
Working pressure:16kg/cm³ Shell test pressure:25kg/cm³ Seat test pressure:18kg/cm³
3.Media: water, neutral oil
4.External and internal coating:100% fusion-bonded epoxy
5.Material 304, 316 used in bolt, nut and washer can be available by requirements.
|
Single large orifice air release valve with DN50 isolation valve and DN50/80 flangeRemarks:
1. Design according to BS EN 1074-4:2000
2. Flange according to EN 1092-2:1997
3. Test according to EN 12266-1:2012
Working pressure: 16kg/cm³ Shell test pressure: 25kg/cm³ Seat test pressure: 18kg/cm³
4. Media: water, neutral oil
5. External and internal coating:100% fusion-bonded epoxy
6. SS304, 316 bolts/nuts/washers are available on request

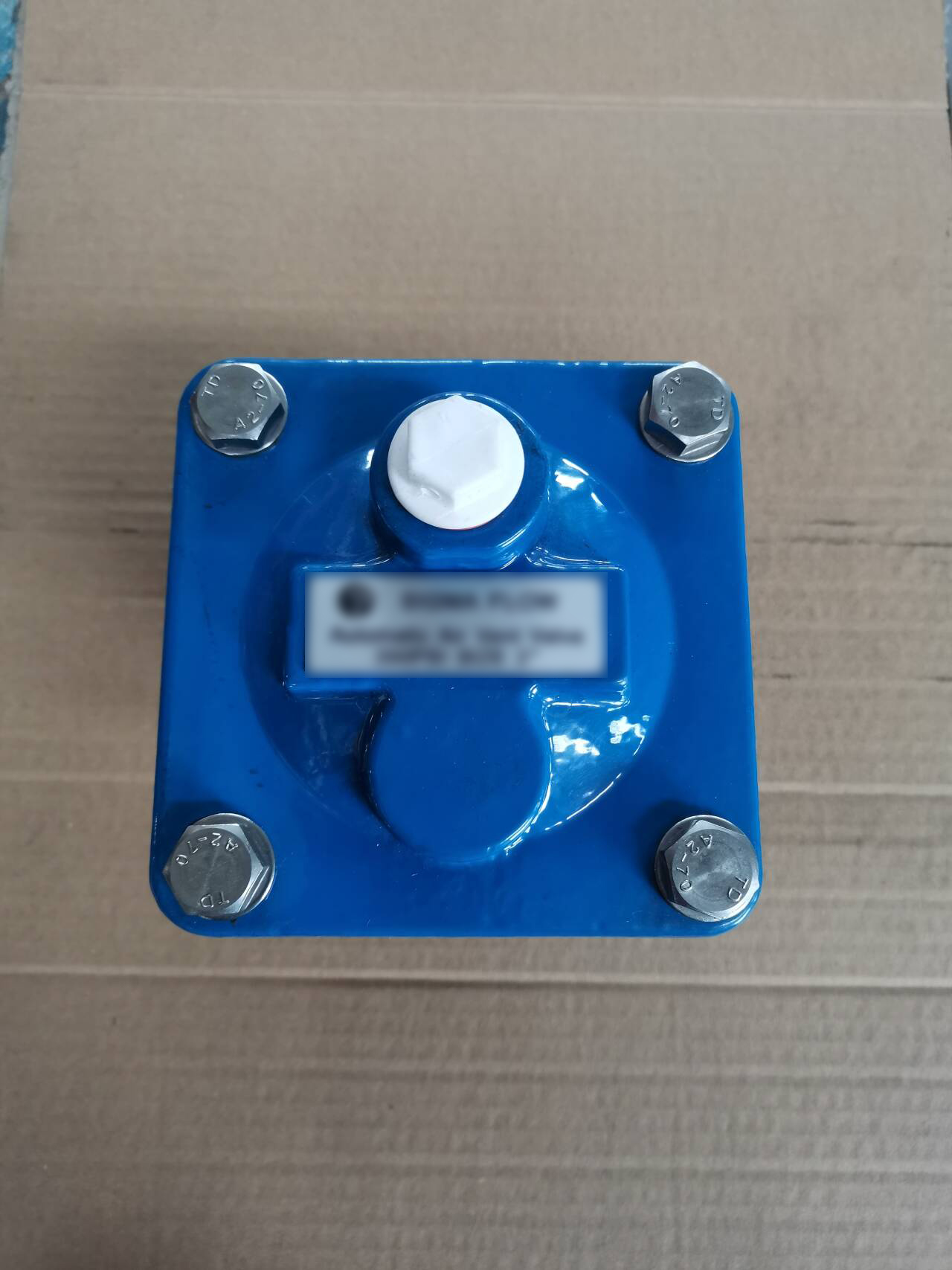

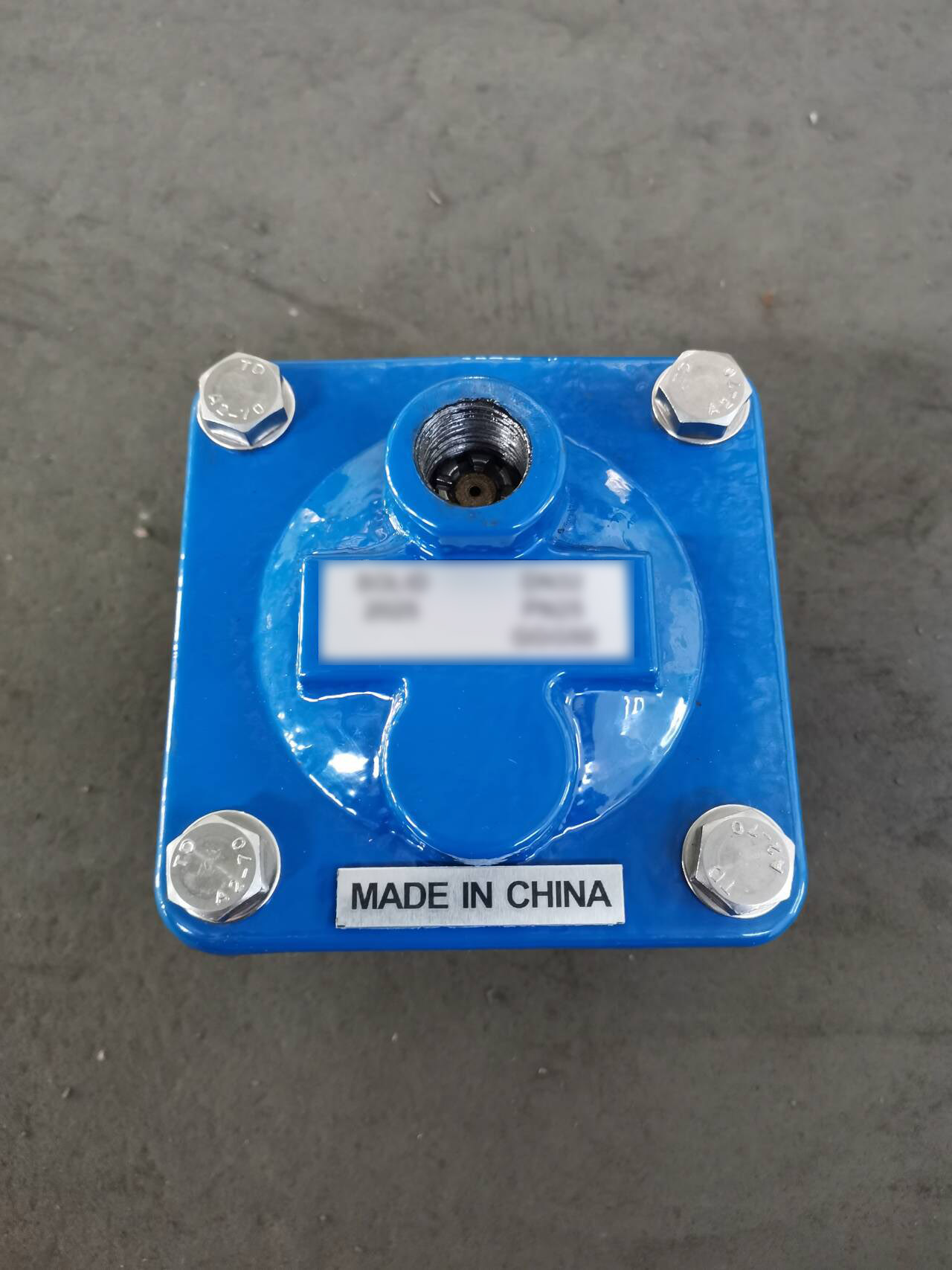

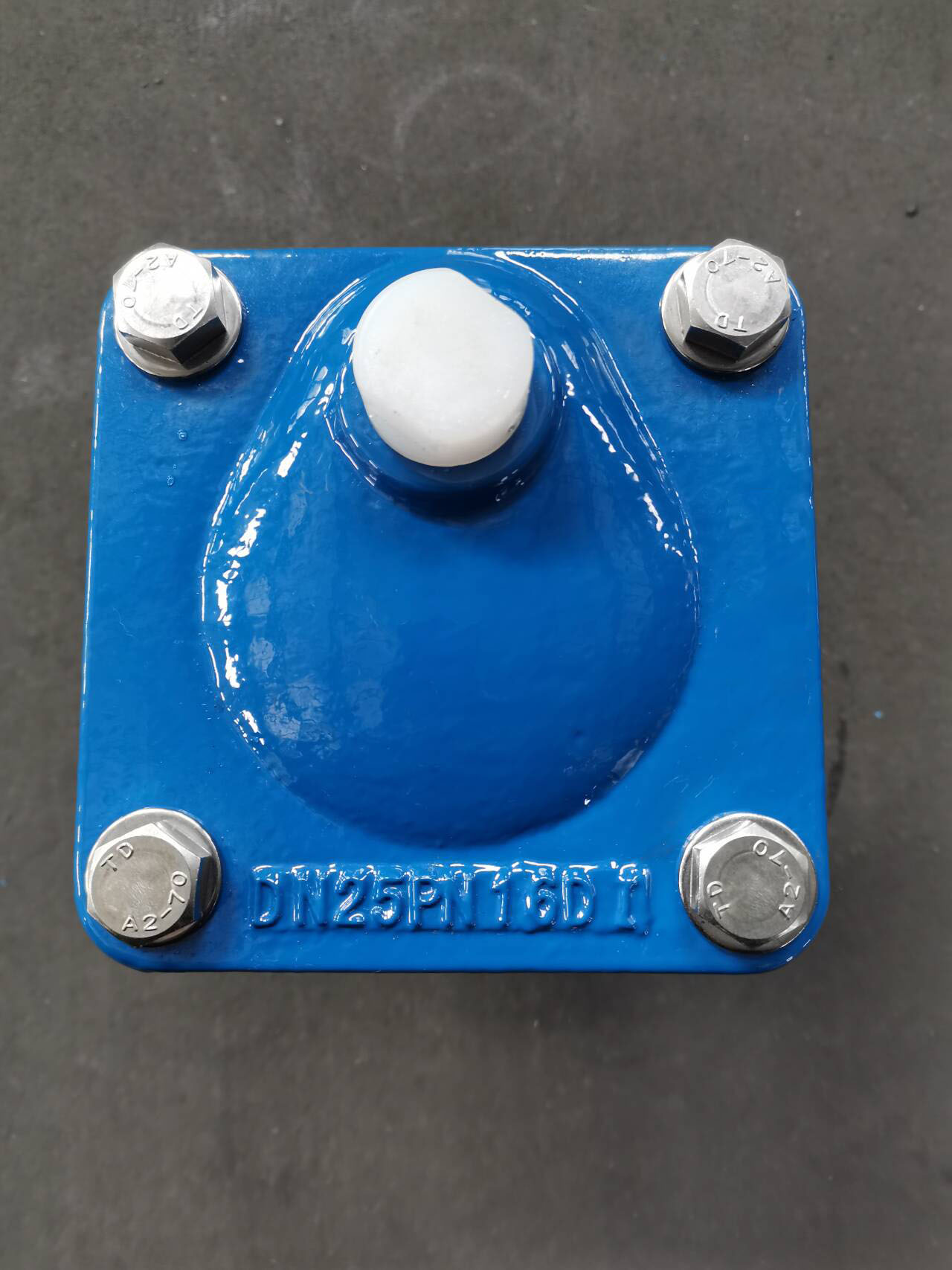

| Single small orifice air release valve with integral flangeRemarks:
1.Design according to BS EN 1074-4:2000
2.Test according to EN 12266-1:2012
Working pressure:16kg/cm³ Shell test pressure:25kg/cm³ Seat test pressure:18kg/cm³
3.Media: water, neutral oil
4.External and internal coating:100% fusion-bonded epoxy
5.Material 304, 316 used in bolt, nut and washer can be available by requirements.
| Single small orifice air release valve with DN25 isolation valveRemarks:
1.Design according to BS EN 1074-4:2000
2.Test according to EN 12266-1:2012
Working pressure:16kg/cm³ Shell test pressure:25kg/cm³ Seat test pressure:18kg/cm³
3.Media: water, neutral oil
4.External and internal coating:100% fusion-bonded epoxy
5.Material 304, 316 used in bolt, nut and washer can be available by requirements.
|
|
